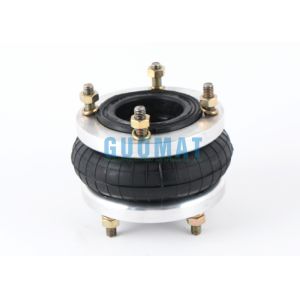

1H150076 Single Convoluted Type Air Spring 76mm Rubber Air Balloon With Flange

Item Name: Single Convoluted Air Spring
Brand: GUOMAT
Model No.: 1H150076
Warranty: 1 Yyear
Material: Rubber and Steel

1H150076 Technical Parameter
1.Top Cover Plate Diameter:133mm
2.Bottom Cover Plate Diameter:133mm
3.Nut(Screw) of the Top Cover Plate:4pcsxM10
4.Nut(Screw) of the Bottom Cover Plate:4pcsxM10
5 .Center Distance Between Nut:109mm
6.Rubber Bellows:MAX Diameter:160mm
7.The Working Stroke:MAX 95mm to MIN 45mm
8.The Maximum Height:95mm
9.The Minimun Height:45mm
8.Stroke Height:50mm
10.Spring Natural Height:76mm
11.Part Weight:1.4KG

Advantages of Air Spring Shock Absorbers
1. Excellent shock absorption capacity
GUOMAT air spring shock absorbers have the highest vibration isolation capacity among all types of vibration shock absorbers. The natural frequency of the system can be as low as 1HZ. If an additional air storage chamber is installed, the natural frequency of the system can be even lower.

2. Stable shock absorption effect
The unique feature of GUOMAT air spring shock absorbers is that the natural frequency of the system will not change significantly when the load changes. This feature, combined with precise height control, makes it particularly suitable for installing GUOMAT air spring shock absorbers at various mounting points of equipment with uneven loads.

3. Precise height control
GUOMAT air spring shock absorbers can be precisely height-controlled by adjusting the internal air pressure.

4. Wide range of sizes
GUOMAT air spring shock absorbers have vibration isolation loads ranging from 0.44 kN to more than 577 kN at each mounting point

5 Compact installation height
GUOMAT air spring shock absorbers can withstand the above loads and perform vibration isolation at an installation height as low as 31 mm.

6. Extend equipment life
GUOMAT air spring shock absorbers can extend the service life of equipment through their excellent vibration isolation capabilities

7. Effective noise reduction. Air spring shock absorbers reduce noise transmitted through structures. GUOMAT air spring shock absorbers themselves do not generate noise because they do not have the flutter problem of traditional coil springs.

8. Wide range of uses. GUOMAT air spring shock absorbers are not only used to protect mechanical structural parts that generate vibrations, but are also widely used to isolate vibrations transmitted to precision machinery through structures.
